Whether you're replacing an e-bike battery, upgrading your display, or troubleshooting an electrical issue, one small component can make all the difference—the connector.

Although e-bike connectors may look similar, they're designed for different purposes and aren't always compatible. Using the wrong connector can lead to charging failures, communication errors, or even permanent damage to your bike's electrical system.

In this guide, we'll explain the most common types of e-bike connectors, how they work, where they're used, and how to identify the right one for your electric bike. Whether you're a first-time owner or an experienced DIY rider, this guide will help you make informed decisions before replacing or upgrading any electrical component.

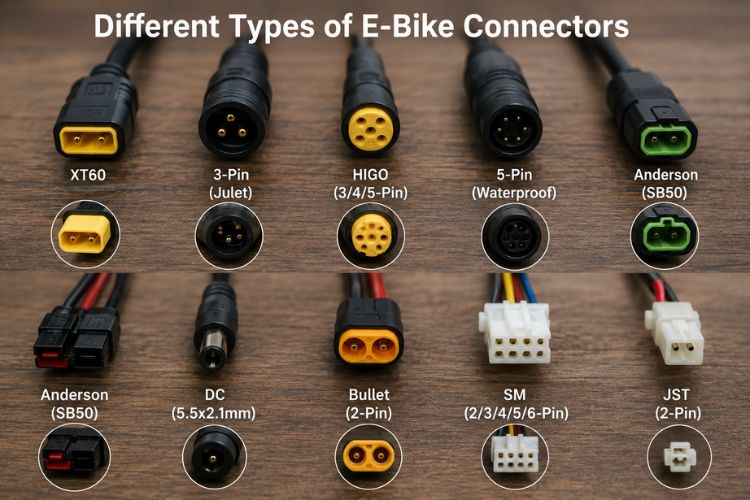

What Are the Different Types of E-Bike Connectors?

Most electric bikes use six main types of connectors, each serving a specific purpose within the electrical system.

Each connector is designed for a different voltage, current, or communication task, which is why they're not always interchangeable.

What Is an E-Bike Connector?

An e-bike connector is an electrical plug that links two components together, allowing power or data to pass safely through the bike's electrical system.

Think of it as the communication network of your e-bike.

Without reliable connectors, essential components such as the battery, motor, controller, and display wouldn't be able to work together.

A typical electric bike may contain more than 10 individual connectors, depending on its design and features.

These connectors are responsible for powering and connecting components such as:

• Battery
• Controller
• Motor
• Display
• Throttle
• Brake sensors
• Pedal assist sensor (PAS)
• Headlight and taillight
• Charging port

Although they vary in size and design, every connector has one job: creating a secure, stable, and efficient electrical connection.

Why E-Bike Connectors Are So Important

Because connectors sit between every major electrical component, they have a direct impact on both performance and reliability.

A high-quality connector helps ensure:

• Stable power delivery to the motor
• Accurate communication between electronic components
• Better resistance to water and dust
• Reduced electrical resistance
• Easier maintenance and replacement
• Improved long-term durability

By comparison, a loose, damaged, or incompatible connector can cause problems such as:

• Sudden power loss
• Motor cut-outs
• Display communication errors
• Charging interruptions
• Intermittent pedal assist
• Overheating caused by poor electrical contact

For this reason, manufacturers carefully select connector types based on the bike's power output, intended riding conditions, and electrical design.

Understanding the Two Main Categories of E-Bike Connectors

Although there are many connector styles available, nearly every e-bike connector falls into one of two categories.

1. Power Connectors

Power connectors carry electricity between high-power components.

These connectors are typically larger because they must safely handle higher current.

They're commonly used for:

• Battery connections
• Motor connections
• Charging ports

Because they transfer significant electrical current, power connectors are designed with durable materials and secure locking mechanisms to minimize heat buildup and prevent accidental disconnection.

2. Signal Connectors

Signal connectors don't carry large amounts of electrical power.

Instead, they transmit information between electronic components.

Examples include communication between:

• Display and controller
• Throttle and controller
• Brake sensors and controller
• Pedal assist sensor and controller
• Lighting systems

Although they carry much less current, signal connectors are equally important because they allow your e-bike's control system to function properly.

Without them, features like pedal assist, speed readings, or motor cut-off during braking wouldn't work as intended.

The Most Common Types of E-Bike Connectors

Now that you understand the basics, let's look at the connector types you're most likely to encounter.

1. Battery Connectors

Battery connectors are responsible for delivering power from the battery pack to the controller.

Because they're handling the highest electrical load on the bike, they must be able to safely transfer high current while minimizing resistance and heat.

Some of the most common battery connectors include:

• XT60
• XT90
• Anderson Connectors
• EC5 Connectors
• Proprietary manufacturer-specific connectors

Among these, XT60 and XT90 are particularly popular on aftermarket batteries and DIY e-bike projects due to their reliability and ease of use.

When replacing a battery connector, it's important to match both the connector type and the electrical specifications. Even connectors that appear similar may have different current ratings or wiring configurations.

2. Motor Connectors

Motor connectors link the controller to either a hub motor or a mid-drive motor.

Unlike battery connectors, many motor connectors carry both power and communication signals through a single waterproof plug.

The most common examples include:

• HIGO Connectors
• Julet Connectors
• 9-pin waterproof connectors
• 10-pin integrated motor connectors

These connector systems are designed to withstand vibration, rain, and dust while providing a secure connection for everyday riding.

Because many modern e-bikes are intended for year-round outdoor use, waterproof motor connectors have become the industry standard across a wide range of commuter, trekking, and folding electric bikes.

3. Display Connectors

Display connectors allow the controller and display to communicate with each other, giving riders access to important information such as speed, battery level, assist mode, trip distance, and error codes.

Most modern e-bikes use waterproof connectors to improve reliability in everyday riding conditions.

Common display connector types include:

• HIGO Display Connectors
• Julet Display Connectors
• JST Connectors
• Proprietary manufacturer-specific connectors

Unlike battery connectors, display connectors mainly transmit data rather than high-current power. Because different brands often use different communication protocols, displays are not always plug-and-play, even if the connector looks identical.

Pro Tip: Before replacing a display, always confirm that both the connector type and the controller protocol are compatible.

4. Throttle Connectors

Throttle connectors send rider input to the controller, allowing the motor to deliver power without pedaling on bikes equipped with a throttle.

The two most common styles are:

• 3-pin connectors
• 5-pin connectors

These connectors are commonly found on:

• Thumb throttles
• Twist throttles
• Half-twist throttles

Although many throttle connectors appear similar, wire order and voltage can vary between manufacturers.

Always verify compatibility before installing a replacement throttle.

5. Brake Sensor Connectors

Brake sensor connectors instantly cut motor power when the rider applies the brakes.

This important safety feature improves control, reduces motor wear, and provides a smoother riding experience.

Brake sensors are commonly used with:

• Mechanical disc brakes
• Hydraulic disc brakes
• Integrated brake levers

Most modern systems use compact waterproof connectors designed to withstand rain, mud, and daily commuting.

6. Charging Connectors

Charging connectors link the charger to the battery pack.

Although they don't operate while riding, they're among the most frequently used connectors on any electric bike.

Some of the most common charging connector styles include:

• DC Barrel Connectors
• XLR Connectors
• GX16 Aviation Connectors
• Magnetic Charging Connectors

Different manufacturers often use proprietary charging connectors, making it important to purchase the correct charger for your specific battery.

Using the wrong charger or connector may damage the battery or create a potential safety risk.

Quick Comparison of Common E-Bike Connectors

Different connectors are designed for different jobs. The table below provides a quick overview of the most common connector types you'll encounter.

As you can see, there isn't one "best" connector. Each is designed for a specific purpose, current rating, and riding environment.

Are E-Bike Connectors Universal?

One of the most common questions e-bike owners ask is:

"Can I use any connector as long as it fits?"

The answer is no.

While some aftermarket connectors follow common industry standards, many manufacturers use proprietary connector designs or unique wiring configurations.

Compatibility depends on several factors, including:

• Connector shape
• Number of pins
• Voltage
• Current rating
• Wiring sequence
• Communication protocol

Even if two connectors physically fit together, they may not function correctly—or safely.

For example, a display from one brand may use the same style of waterproof connector as another, but if the communication protocol is different, the display may not turn on or operate properly.

Whenever possible, use replacement parts recommended by the bike or component manufacturer.

How to Identify Your E-Bike Connector

Not sure which connector your bike uses?

Before ordering replacement parts, take a few minutes to identify the connector correctly.

Step 1 — Count the Pins

Many connectors are identified by the number of electrical pins they contain.

Common examples include:

• 2-pin
• 3-pin
• 5-pin
• 6-pin
• 9-pin

Step 2 — Check the Connector Shape

Look at the overall design.

Ask yourself:

• Is it round or rectangular?
• Does it have a locking collar?
• Is there an alignment key?
• Is it color-coded?

Small design differences often indicate different connector families.

Step 3 — Look for Waterproof Seals

Many modern connectors include rubber O-rings or sealed housings to prevent water and dust from entering the electrical system.

These waterproof connectors are especially common on commuter, trekking, and folding e-bikes designed for year-round outdoor use.

Step 4 — Read Any Printed Markings

Some connectors include part numbers or manufacturer markings that can help identify the exact model.

A quick online search using these markings can often save time when purchasing replacement parts.

Step 5 — Check Your Owner's Manual

If you're still unsure, your bike's owner manual or manufacturer's support page is usually the most reliable source of compatibility information.

Taking a clear photo of the connector before ordering replacement parts is also a simple way to avoid costly mistakes.

Common Connector Problems

Even high-quality connectors can wear over time.

Some of the most common issues include:

Many of these problems can be prevented with regular inspections and proper maintenance.

Tips for Maintaining E-Bike Connectors

Like any electrical component, e-bike connectors benefit from regular inspection and basic maintenance. A few simple habits can help prevent connection issues and extend the life of your bike's electrical system.

Here are some best practices:

• Keep connectors clean. Dust, dirt, and debris can interfere with electrical contact over time.
• Inspect after riding in wet conditions. If you've been riding in heavy rain or muddy environments, check that connectors are dry and free from moisture.
• Avoid pulling on the wires. Always disconnect connectors by holding the connector body rather than the cable itself.
• Check for loose or damaged pins. Bent or worn pins can lead to poor connections and intermittent electrical problems.
• Reconnect securely after maintenance. Make sure waterproof connectors are fully seated and locked before riding.

A quick inspection every few months can help identify small issues before they become expensive repairs.

Common Mistakes to Avoid

Many connector problems aren't caused by faulty parts—they're caused by simple installation mistakes.

Avoid these common errors:

Using Connectors That Only Look Similar

Two connectors may appear identical but have different pin layouts or wiring configurations. Never assume compatibility based on appearance alone.

Ignoring Voltage and Current Ratings

Battery connectors are designed to handle specific electrical loads.

Installing a connector that isn't rated for your system may lead to overheating or reduced performance.

Mixing Components from Different Brands

Even if two manufacturers use similar connector styles, they may use different communication protocols.

Always verify compatibility before mixing displays, controllers, batteries, or motors.

Skipping Waterproof Protection

If you frequently ride in wet weather, damaged waterproof seals should be replaced as soon as possible.

Water intrusion is one of the most common causes of connector corrosion.

Forcing a Connector Into Place

A connector should fit smoothly.

If excessive force is required, stop immediately and confirm you're using the correct connector.

Forcing incompatible connectors can permanently damage both the connector and the electrical component.

How to Choose the Right E-Bike Connector

If you're purchasing a replacement connector, keep these factors in mind before ordering.

Whenever possible, choose genuine replacement parts or high-quality connectors that match your bike's original specifications.

Although aftermarket connectors are widely available, compatibility should always come before convenience.

Frequently Asked Questions

Are e-bike connectors universal?

No. While some connector types are widely used across the industry, many brands use proprietary connectors or different wiring configurations.

What's the difference between XT60 and XT90 connectors?

Both are high-current battery connectors, but XT90 connectors are designed to handle more current and are commonly found on higher-powered electric bikes.

Are HIGO and Julet connectors the same?

They are similar waterproof connector systems and are often confused with one another, but they are not always interchangeable. Always verify the connector specifications before replacing components.

Can I replace an e-bike connector myself?

Simple signal connectors can often be replaced by experienced DIY users. However, battery and motor connectors should be handled with extra care, especially on high-voltage systems.

Why won't my replacement battery connect?

The connector type, pin layout, voltage, or wiring configuration may not match your existing battery or controller.

Which connector is best for waterproof riding?

Waterproof connector systems such as HIGO and Julet are widely used on modern commuter and trekking e-bikes because they provide excellent protection against water and dust.

How often should connectors be inspected?

Inspect your connectors every few months and after riding in heavy rain, washing your bike, or noticing any electrical issues.

Can damaged connectors affect performance?

Yes. Loose or corroded connectors can interrupt power delivery, reduce reliability, and cause intermittent motor or display issues.

Should I upgrade my connectors?

Only if your current connectors are damaged, worn, or unsuitable for your bike's electrical requirements. Upgrading without a clear reason may create compatibility problems.

Do connector types affect charging speed?

Not directly. Charging speed depends primarily on your battery and charger specifications. However, a damaged or poor-quality charging connector can reduce charging reliability.

Final Thoughts

Although they're often overlooked, e-bike connectors are essential to the performance, safety, and reliability of every electric bike.

From delivering battery power to transmitting signals between the display, controller, throttle, and motor, each connector has a specific purpose. Understanding these connector types can help you troubleshoot electrical problems, choose compatible replacement parts, and avoid costly installation mistakes.

If you're replacing any electrical component, always confirm the connector type, pin configuration, voltage, current rating, and manufacturer compatibility before making a purchase.

A few extra minutes spent checking compatibility today can save hours of frustration—and unnecessary repair costs—in the future.

Whether you're maintaining a daily commuter, upgrading a folding e-bike, or building a custom electric bike, choosing the correct connector is a small step that makes a big difference.
