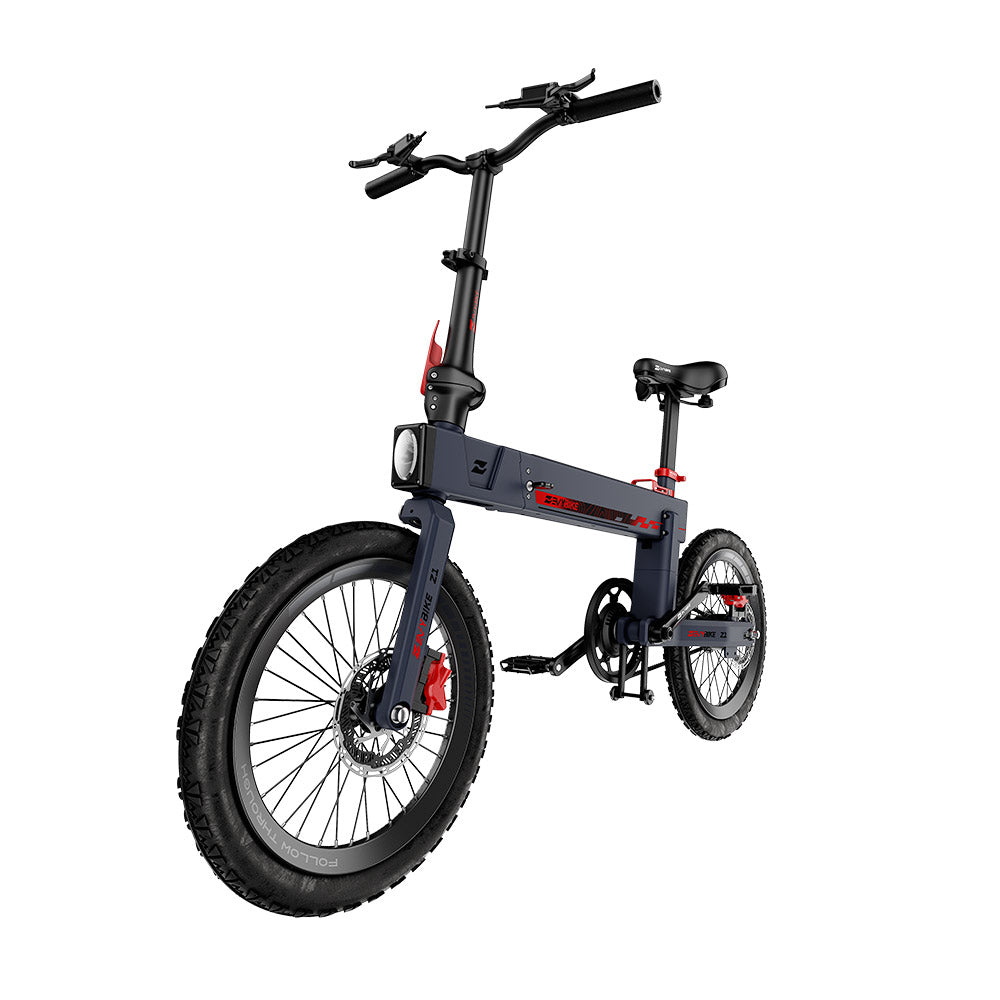

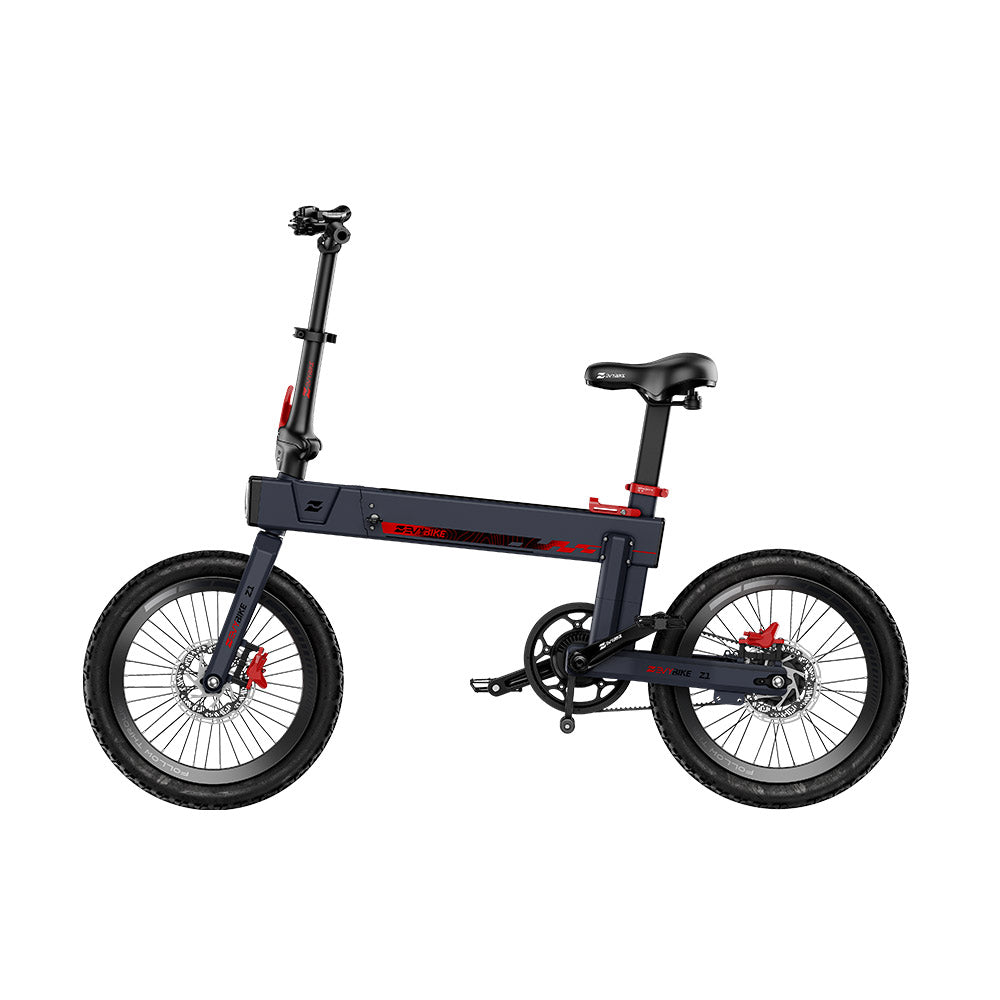

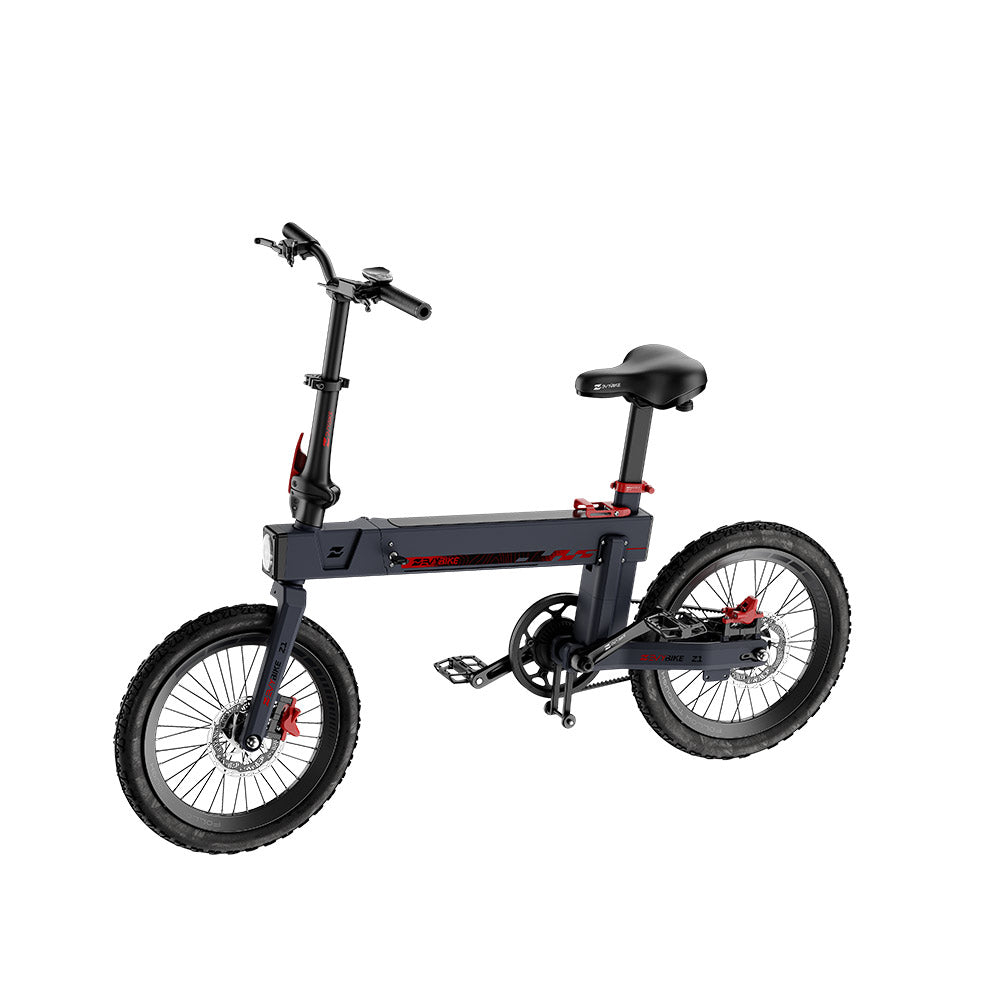

ZEVYBIKE GO Z1 - BLACK
Designed for premium urban mobility, this folding eBike stands apart from conventional compact bikes in both engineering and visual refinement. It features a forged aluminum frame with a seamless appearance, giving the bike a more complete structural expression and a cleaner, more sophisticated form language than typical welded designs.
At the structural level, the single-sided front wheel support creates a striking visual identity and adds a futuristic edge to the overall silhouette. The battery is fully integrated inside of the frame, preserving the bike’s clean one-piece appearance. A belt-drive system further enhances the riding experience by offering quieter operation, lower maintenance, and a cleaner everyday commuting solution
.Its folding mechanism draws inspiration from the interlocking principles of traditional Chinese mortise-and-tenon craftsmanship, transforming folding from a purely functional feature into a more elegant structural expression. With the center pull-ring release, the bike folds quickly and intuitively in one simple action, making it highly practical for apartments, offices, elevators, car trunks, and daily urban commuting.
Specification
MotorA 350W motor (450W peak) with 15 N·m of rated torque and less than 42 N·m of peak torque delivers reliable power for everyday riding. The motor features 10 pairs of magnetic steel, operates at 36V and 10A, and is engineered for smooth, efficient performance. | BatterySamsung lithium-ion battery with 15Ah capacity and 36V rated voltage powers your ride with dependable energy. The battery features an intelligent BMS protection system, including short-circuit protection, overcharge protection, over-discharge protection, and overcurrent protection. Charging input voltage ranges from 2–3V, with a full charge achieved in 5–6 hours. |
ChargerThe charger delivers 126W of rated power with a 100–240 VAC, 50/60 Hz input at 3A. It provides a 42.0V rated output voltage and 3A rated output current, fully charging the battery in 5–6 hours. | DisplayConstructed from 6061 aluminum alloy, the frame features a one-piece forged main structure with no welded seams, delivering a clean aesthetic and enhanced structural integrity. |
Riding ModesThree riding modes deliver controlled speed options to suit your riding environment. Choose from Low, Medium, or High to match your pace and local regulations, with top speeds limited to 15 km/h, 20 km/h, and 25 km/h respectively. | Belt DriveA belt drive system features a 910mm belt with a 12mm width and a 60:20 gear ratio, delivering a smooth, quiet, and low-maintenance riding experience. |
PerformanceThe eBike supports a max load of 150–180 kg, with a max speed of 25 km/h, an estimated range of 90–120 km, a climbing angle of 0–30°, and IP67 water resistance. | LOT ModuleThe integrated IoT module features the CloudDrive CDiBox2 Terminal. It includes a 1200 mAh backup battery that provides 120–130 hours of operation after power loss, depending on operating status and network signal strength. The module supports 4G network connectivity and is backward compatible with 2G. It pairs with the EbikeLink App, offering GPS tracking, battery indication, remote lock, and more (refer to the manual for full functionality). |
LightingThe front light operates at 6–48V and 10–30mA, while the rear light operates at 36–48V and 10–30mA, providing reliable visibility for safe riding. | PackagingEach eBike is packaged in a carton measuring 82 × 54 × 70 cm (L × W × H), with a gross weight of 21.5 kg and a net weight of 20 kg. A 40HQ container loads 210 units. Package contents include one complete bike, one user manual, a folding and unfolding video guide, one charger, one battery, two battery-compartment keys, two pedals, one tool kit, and protective foam inserts for folded storage. |
Stunning Shots by CapturePro X200
Discover the World with CapturePro X200's Lens
Small Size. Big Freedom.
A compact, lightweight design made for easy storage, transport, and everyday riding.
